- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/8000/110-100
- 8 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- Optional 2 additional batteries possible.

Total power inverter: 24 kVA / 19.2 kW
Total capacity battery: 38.4 kWh
Useful capacity battery: 36.48 kWh

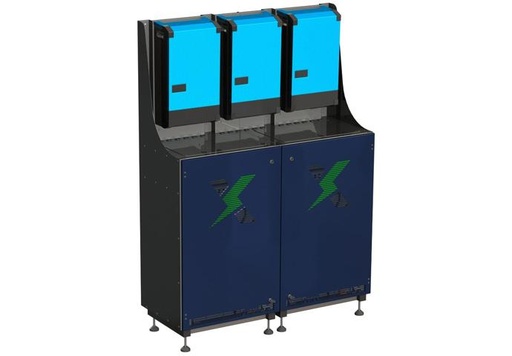

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/10000/140-100
- 10 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- No extra batteries possible

Total power inverter: 30 kVA / 24 kW
Total capacity battery: 48 kWh
Useful capacity battery: 45.6 kWh

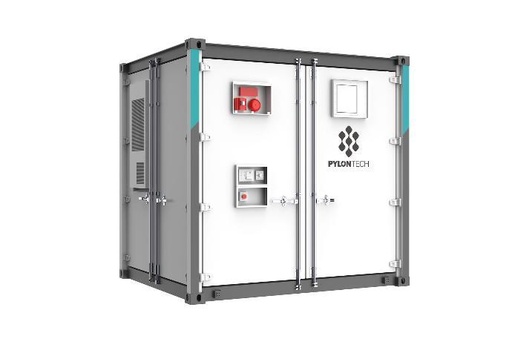

System configuration : 375kW / 689.92kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 375 kW without transformer.
- 44 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 375 kVA / 375 kW
Total capacity battery: 689.92 kWh
Useful capacity battery: 655.42 kWh

System configuration : 437.5kW / 862.4kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 437,5 kW without transformer.
- 55 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 437.5 kVA / 437.5 kW
Total capacity battery: 862.4 kWh
Usable capacity battery: 819.28 kWh

DC-DC PV Charger

Rated Power: 45kW
Maximum Input Voltage: 830V
Start-up Voltage: 250V
MPPT Voltage Range: 200~750 (430~750 @full load ) V
Number of MPPT: 3
Maximum Input Current of each MPPT: 35A/35A/35A

Victron DC productie pack 3,4 kWh bestaande uit:

• Victron SmartSolar MPPT 250/60 TR
• Benodigde materialen om aan te sluiten aan Cerbo
• Kabels voorzien van 2 meter.

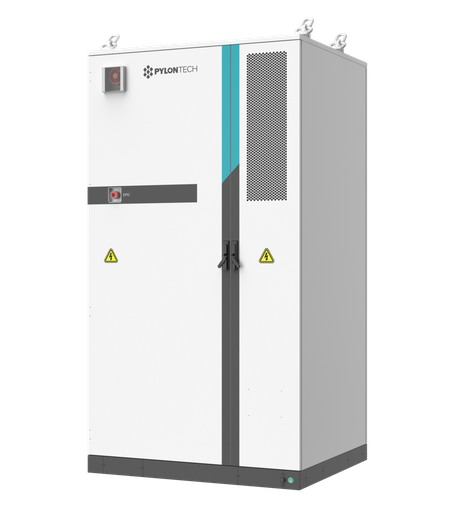

System configuration : 50kW / 99.54kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger Solis 50 kW.
- 21 batteries Pylontech M1
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 1500 × 2195 × 1125 mm

Total power inverter: 55 kVA / 50 kW
Total capacity battery: 99.54 kWh
Useful capacity battery: 94.48 kWh

Bi directional Storage Inverter

Flexible Configuration -

Battery Side:

- ​150 /750Vdc

- ​Rated Power 30kW

- ​Maximum Power 33kW

AC Grid Output

- ​Rated Power 30kW

- ​Maximum Apparent Power 33kVa

- ​3W4P+PE ,400 (15%) Vac 50Hz

- ​Overload Capacity 110% ~ 120%,10min / 120%~150%, 200ms

Peak Efficiency 97.3%

Communication port - CAN/RS485/Ethernet/WIFI

General Specification:

- ​Dimension 440*173*596mm

- ​Cooling  ​Forced AIr Cooling

- ​Topology - Non-isolation

- ​Temperature -30° ~60°C  ( >45°C  derating)

- ​IP Rating -IP20

Certification

Grid-tied Standard - EN50549

Synergrid Homologation in progress

Safety Certification - CE

EMC standard - FCC

System configuration : 100kW / 250.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 2 Inverters/chargers Solis 50 kW.
- 16 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1500*1300*2200 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 250.88 kWh
Useful capacity battery: 238.33 kWh

Power Conversion System (PCS)

Flexible Configuration
AC voltage 690(-15%~10%)V
DC Voltage range 1000~1500V

System configuration : 4180kWh

- 80 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation)

Total capacity battery: 4180.00 kWh
Useful capacity battery: 3971.00 kWh

System configuration : 750kW / 1379.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 375 kW without transformer.
- 88 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 750 kVA / 750 kW
Total capacity battery: 1379.84 kWh
Useful capacity battery: 1310.85 kWh

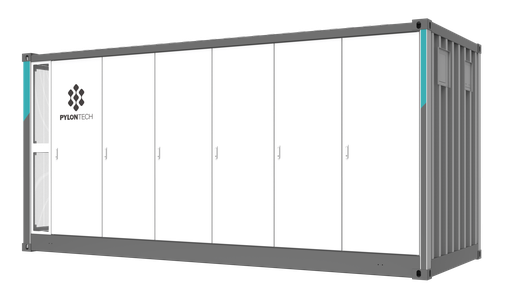

System configuration : 5016kWh

- 96 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outdoor installation).

Total capacity battery: 5016.00 kWh
Useful capacity battery: 4765.20 kWh

Energy meter MODBUS, 3 Phase, incl 3 x Rogowski 1000A

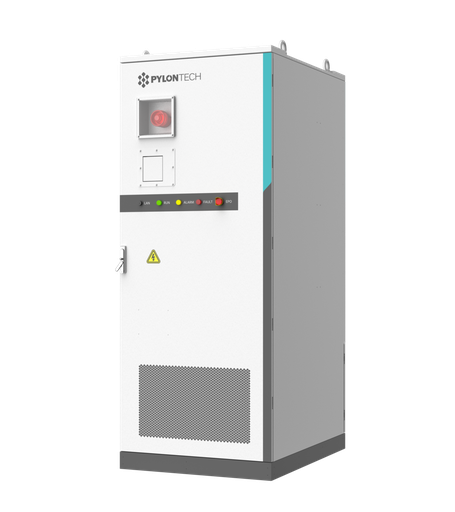

System configuration : 100kW / 203.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 1 Inverter/Charger In-Power 100kW.
- 13 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1131*1627*2212 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 203.84 kWh
Useful capacity battery: 193.65 kWh

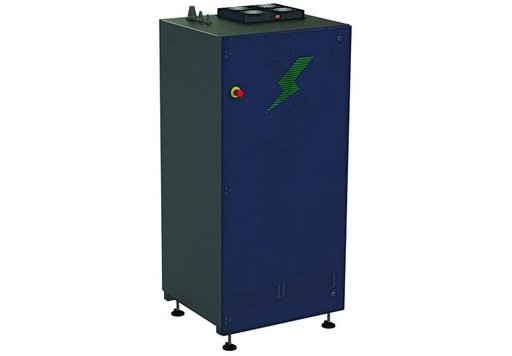

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 29.9 kW.
- 13 batteries Pylontech M1 4.736 kWh
- DoD (Dept of Discharge) of 95%.
- Cabinet system in Magnelis steel (indoor installation).

Total power inverter: 29.9 kVA / 29.9 kW
Total capacity battery: 61.57 kWh
Useful capacity battery: 58.49 kWh

De Elion Box Res is ideaal voor het aansturen van
onze kleinere slimme residentiële en C&I- opslagsystemen tot 24 kW.

Deze box is ook ideaal geschikt voor solar curtailment.

De Elion Box Pro is speciaal ontwikkeld voor onze industriële C&I-producten vanaf 100 kW vermogen.

Dit geavanceerde systeem biedt niet alleen betrouwbare prestaties, maar is ook uitgerust met een 4G-module voor naadloze connectiviteit. Opgelet, de 4G-module is momenteel nog niet compatibel met Elion.

Bovendien beschikt de Elion Box PRO over diverse uitgangen, waarmee u eenvoudig toekomstige stuurbare assets kunt integreren.

Hiermee bent u verzekerd van een toekomstbestendig systeem dat meegroeit met uw energiebehoeften.

System configuration : 3344kWh

- 64 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation).

Total capacity battery: 3344.00 kWh
Useful capacity battery: 3176.80 kWh
