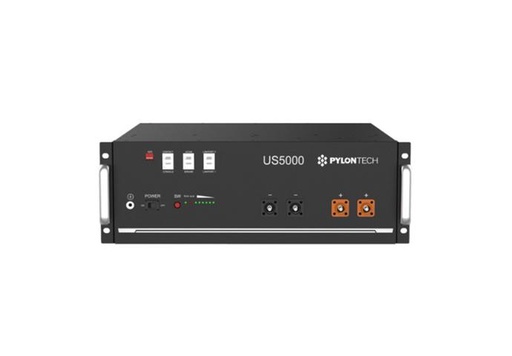

The US5000 is a 48V battery with incredible features to provide a competitive advantage in the market.
Weight: 39.7 kg
Battery type: Lithium-ion
Rated energy: 4800 Wh
Depth of discharge: 95.00 %
Voltage: 48 V

De Elion Box is ideaal voor het aansturen van
onze slimme residentiële en C&I- opslagsystemen van 100kW tot 500kW.

Met zijn geavanceerde technologie biedt de Elion Box Standard optimale controle en efficiëntie, waardoor uw energie eenvoudig en betrouwbaar beheerd wordt.

Power Conversion System (PCS)

Flexible Configuration
AC voltage 400(-15%~10%)V
DC Voltage range 600~900V

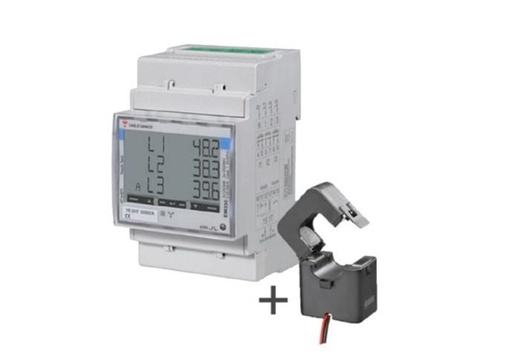

Meterkit bestaande uit volgende onderdelen
- Carlo Gavazzi meter EM530
- RS485 naar USB interface
- 3 x CT-Spoel SC40-B 150/5A

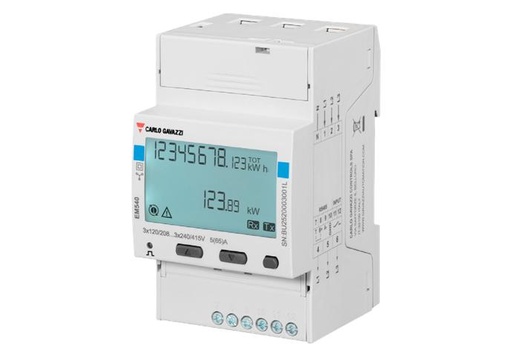

Meterkit bestaande uit volgende onderdelen
- Carlo Gavazzi meter EM540
- RS485 naar USB interface

Victron DC productie pack 5,76 kWh bestaande uit:

• SmartSolar MPPT RS 450/100
• Benodigde materialen om aan te sluiten aan Cerbo
• Kabels voorzien van 2 meter.

Victron DC productie pack 11,52 kWh bestaande uit:

• SmartSolar MPPT RS 450/100
• Benodigde materialen om aan te sluiten aan Cerbo
• Kabels voorzien van 2 meter.

Meterkit bestaande uit volgende onderdelen
- Carlo Gavazzi meter EM530
- RS485 naar USB interface
- 3 x CT-Spoel SC40-B 150/5A

Meterkit bestaande uit volgende onderdelen
- Carlo Gavazzi meter EM530
- RS485 naar USB interface
- 3 x CT-Spoel SC40-B 150/5A

Meterkit bestaande uit volgende onderdelen
- Carlo Gavazzi meter EM530
- RS485 naar USB interface
- 3 x CT-Spoel SC40-B 150/5A

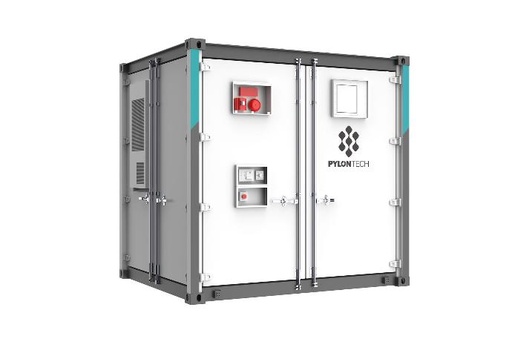

System configuration : 500kW / 1034.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 500 kW without transformer.
- 66 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 500 kVA / 500 kW
Total capacity battery: 1034.88 kWh
Useful capacity battery: 983.14 kWh

System configuration : 250kW / 517.44kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 250 kW without transformer.
- 33 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 250 kVA / 250 kW
Total capacity battery: 517.44 kWh
Useful capacity battery: 491.57 kWh

System configuration : 1000kW / 2069.76kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 500 kW without transformer.
- 132 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 1000 kVA / 1000 kW
Total capacity battery: 2069.76 kWh
Useful capacity battery: 1966.27 kWh

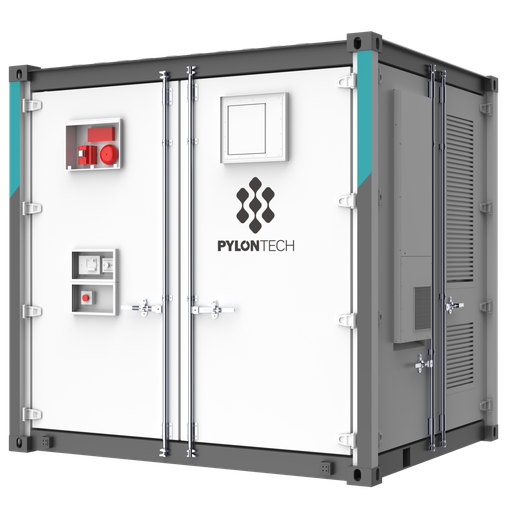

System configuration : 187.5kW / 344.96kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 187.5 kW without transformer.
- 22 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 187.5 kVA / 187.5 kW
Total capacity battery: 344.96 kWh
Useful capacity battery: 327.71 kWh

Energy meter MODBUS, 3 Phase, incl 3 x Rogowski 1000A

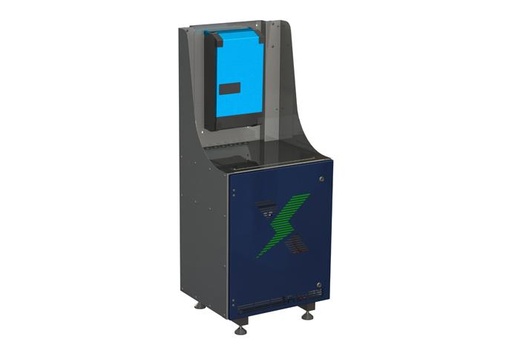

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- One inverter/charger Multiplus-II 48/3000/35-32
- One battery Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 3 batteries (indoor installation).
- Optional 2 additional batteries possible.

Total power inverter: 3 kVA / 2.4 kW
Total capacity battery: 4.8 kWh
Useful capacity battery: 4.32 kWh

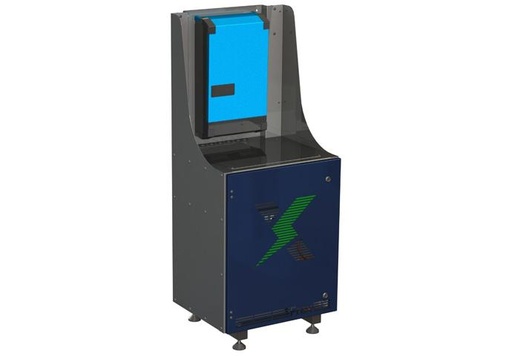

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- One inverter/charger Multiplus-II 48/5000/70-50
- 2 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 3 batteries (indoor installation).
- Optional 1 additional battery possible.

Total power inverter: 5 kVA / 4 kW
Total capacity battery: 9.6 kWh
Useful capacity battery: 8.64 kWh

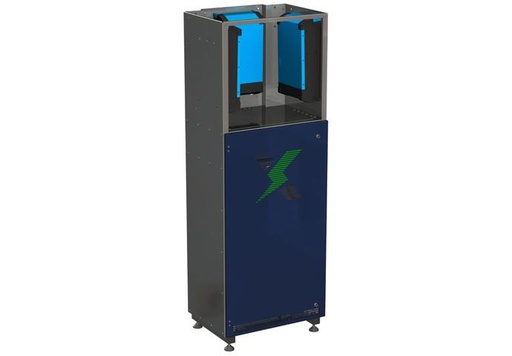

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/3000/35-32
- 3 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 6 batteries (indoor installation).
- Optional 3 additional batteries possible.

Total power inverter: 9 kVA / 7.2 kW
Total capacity battery: 14.4 kWh
Useful capacity battery: 13.68 kWh

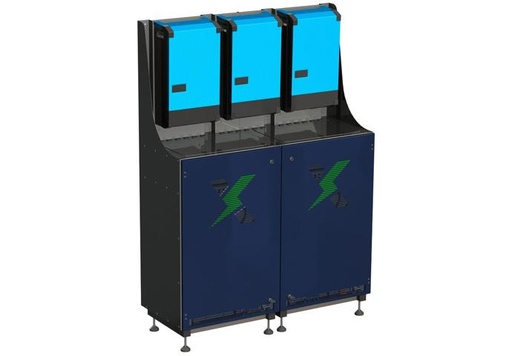

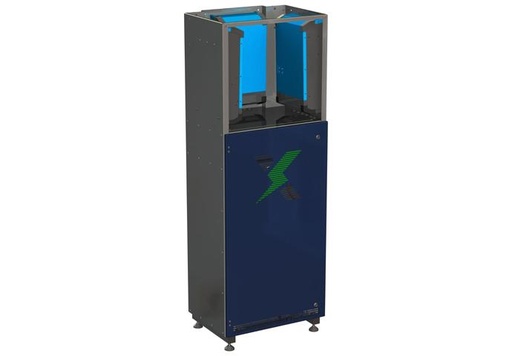

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/5000/70-50
- 5 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 6 batteries (inside installation).
- Optional 1 additional battery possible.

Total power inverter: 15 kVA / 12 kW
Total capacity battery: 24 kWh
Useful capacity battery: 22.8 kWh
