Battery storage systems

System configuration : 500kW / 1034.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 500 kW without transformer.
- 66 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 500 kVA / 500 kW
Total capacity battery: 1034.88 kWh
Useful capacity battery: 983.14 kWh

System configuration : 250kW / 517.44kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 250 kW without transformer.
- 33 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 250 kVA / 250 kW
Total capacity battery: 517.44 kWh
Useful capacity battery: 491.57 kWh

System configuration : 1000kW / 2069.76kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 500 kW without transformer.
- 132 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 1000 kVA / 1000 kW
Total capacity battery: 2069.76 kWh
Useful capacity battery: 1966.27 kWh

System configuration : 187.5kW / 344.96kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 187.5 kW without transformer.
- 22 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 187.5 kVA / 187.5 kW
Total capacity battery: 344.96 kWh
Useful capacity battery: 327.71 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- One inverter/charger Multiplus-II 48/3000/35-32
- One battery Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 3 batteries (indoor installation).
- Optional 2 additional batteries possible.

Total power inverter: 3 kVA / 2.4 kW
Total capacity battery: 4.8 kWh
Useful capacity battery: 4.32 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- One inverter/charger Multiplus-II 48/5000/70-50
- 2 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 3 batteries (indoor installation).
- Optional 1 additional battery possible.

Total power inverter: 5 kVA / 4 kW
Total capacity battery: 9.6 kWh
Useful capacity battery: 8.64 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/3000/35-32
- 3 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 6 batteries (indoor installation).
- Optional 3 additional batteries possible.

Total power inverter: 9 kVA / 7.2 kW
Total capacity battery: 14.4 kWh
Useful capacity battery: 13.68 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/5000/70-50
- 5 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 6 batteries (inside installation).
- Optional 1 additional battery possible.

Total power inverter: 15 kVA / 12 kW
Total capacity battery: 24 kWh
Useful capacity battery: 22.8 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/8000/110-100
- 8 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- Optional 2 additional batteries possible.

Total power inverter: 24 kVA / 19.2 kW
Total capacity battery: 38.4 kWh
Useful capacity battery: 36.48 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/10000/140-100
- 10 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- No extra batteries possible

Total power inverter: 30 kVA / 24 kW
Total capacity battery: 48 kWh
Useful capacity battery: 45.6 kWh

System configuration : 375kW / 689.92kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 375 kW without transformer.
- 44 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 375 kVA / 375 kW
Total capacity battery: 689.92 kWh
Useful capacity battery: 655.42 kWh

System configuration : 437.5kW / 862.4kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 437,5 kW without transformer.
- 55 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 437.5 kVA / 437.5 kW
Total capacity battery: 862.4 kWh
Usable capacity battery: 819.28 kWh

System configuration : 50kW / 99.54kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger Solis 50 kW.
- 21 batteries Pylontech M1
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 1500 × 2195 × 1125 mm

Total power inverter: 55 kVA / 50 kW
Total capacity battery: 99.54 kWh
Useful capacity battery: 94.48 kWh

System configuration : 100kW / 250.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 2 Inverters/chargers Solis 50 kW.
- 16 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1500*1300*2200 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 250.88 kWh
Useful capacity battery: 238.33 kWh

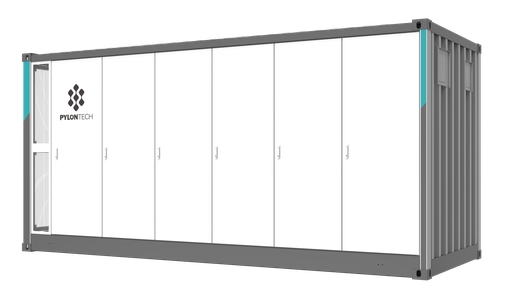

System configuration : 4180kWh

- 80 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation)

Total capacity battery: 4180.00 kWh
Useful capacity battery: 3971.00 kWh

System configuration : 750kW / 1379.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 375 kW without transformer.
- 88 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 750 kVA / 750 kW
Total capacity battery: 1379.84 kWh
Useful capacity battery: 1310.85 kWh

System configuration : 5016kWh

- 96 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outdoor installation).

Total capacity battery: 5016.00 kWh
Useful capacity battery: 4765.20 kWh

System configuration : 100kW / 203.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 1 Inverter/Charger In-Power 100kW.
- 13 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1131*1627*2212 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 203.84 kWh
Useful capacity battery: 193.65 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 29.9 kW.
- 13 batteries Pylontech M1 4.736 kWh
- DoD (Dept of Discharge) of 95%.
- Cabinet system in Magnelis steel (indoor installation).

Total power inverter: 29.9 kVA / 29.9 kW
Total capacity battery: 61.57 kWh
Useful capacity battery: 58.49 kWh

System configuration : 3344kWh

- 64 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation).

Total capacity battery: 3344.00 kWh
Useful capacity battery: 3176.80 kWh
