Battery storage systems

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/5000/70-50
- 5 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 6 batteries (inside installation).
- Optional 1 additional battery possible.

Total power inverter: 15 kVA / 12 kW
Total capacity battery: 24 kWh
Useful capacity battery: 22.8 kWh

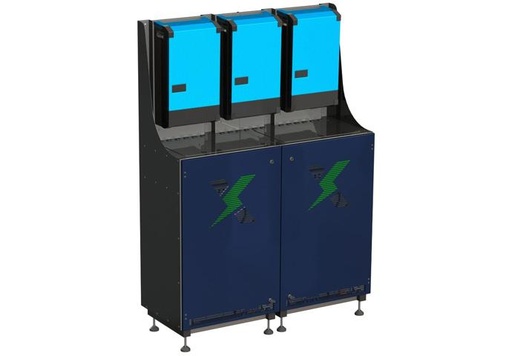

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/8000/110-100
- 8 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- Optional 2 additional batteries possible.

Total power inverter: 24 kVA / 19.2 kW
Total capacity battery: 38.4 kWh
Useful capacity battery: 36.48 kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- No-break output or also called UPS.
- Three inverter/chargers Multiplus-II 48/10000/140-100
- 10 batteries Pylontech US5000 4.8 kWh
- DoD (Dept of Discharge) of 90%.
- Cabinet system in magnelis with space for 10 batteries (indoor installation).
- No extra batteries possible

Total power inverter: 30 kVA / 24 kW
Total capacity battery: 48 kWh
Useful capacity battery: 45.6 kWh

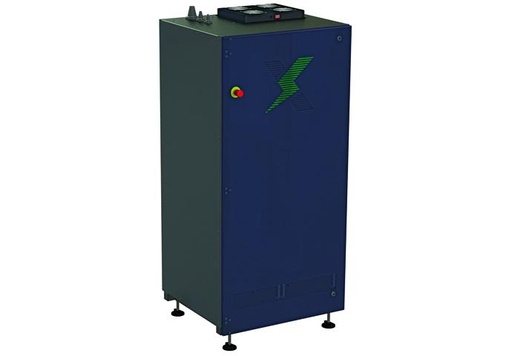

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 29.9 kW.
- 13 batteries Pylontech M1 4.736 kWh
- DoD (Dept of Discharge) of 95%.
- Cabinet system in Magnelis steel (indoor installation).

Total power inverter: 29.9 kVA / 29.9 kW
Total capacity battery: 61.57 kWh
Useful capacity battery: 58.49 kWh

System configuration : 125kW / 261.25kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 1 Inverter/Charger In-power 125kW.
- 5 batteries Pylontech M7
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system
- Cabinet (outside installation)

Total power inverter: 125 kVA / 125 kW
Total capacity battery: 261.25 kWh
Useful capacity battery: 248.19 kWh

System configuration : 1075kW / 2090kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1075 kW without transformer.
- 40 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1075 kVA / 1075 kW
Total capacity battery: 2090.00 kWh
Useful capacity battery: 1985.50 kWh

System configuration : 1290kW / 2508kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1290 kW without transformer.
- 48 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1290 kVA / 1290 kW
Total capacity battery: 2508.00 kWh
Useful capacity battery: 2382.60 kWh

System configuration : 1500kW / 2926kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1505 kW without transformer.
- 56 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1505 kVA / 1505 kW
Total capacity battery: 2926.00 kWh
Useful capacity battery: 2779.70 kWh

System configuration : 1725kW / 3344kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1725 kW without transformer.
- 64 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1725 kVA / 1725 kW
Total capacity battery: 3344.00 kWh
Useful capacity battery: 3176.80 kWh

System configuration : 4180kWh

- 80 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation)

Total capacity battery: 4180.00 kWh
Useful capacity battery: 3971.00 kWh

System configuration : 5016kWh

- 96 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outdoor installation).

Total capacity battery: 5016.00 kWh
Useful capacity battery: 4765.20 kWh

System configuration : 3344kWh

- 64 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- 20ft Liquid cooling Container (outside installation).

Total capacity battery: 3344.00 kWh
Useful capacity battery: 3176.80 kWh

PowerSync Distribution Cabinet integrates
- the power grid.
- renewable energy (e.g., solar power)
- traditional energy sources (e.g., diesel generators)
- energy storage units
Achieving dynamic energy balance through intelligent dispatch.
As a core component, the "Multi-energy Complementary Energy Storage System"
incorporates a lithium battery system, PCS (Power Conversion
System), control system, and external interfaces.

This system enables:
- Uninterrupted power supply during grid outages
- PV consumption maximization (solar energy utilization)
- Seamless Oms cut-in/cut-out synchronization with diesel generators
- Economical fuel consumption control or diesel generators
