Cabinet

System configuration : 50kW / 99.54kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger Solis 50 kW.
- 21 batteries Pylontech M1
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 1500 × 2195 × 1125 mm

Total power inverter: 55 kVA / 50 kW
Total capacity battery: 99.54 kWh
Useful capacity battery: 94.48 kWh

System configuration : 100kW / 203.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 1 Inverter/Charger In-Power 100kW.
- 13 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1131*1627*2212 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 203.84 kWh
Useful capacity battery: 193.65 kWh

System configuration : 100kW / 250.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 2 Inverters/chargers Solis 50 kW.
- 16 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1500*1300*2200 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 250.88 kWh
Useful capacity battery: 238.33 kWh

System configuration : 100kW / 215kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger SCU 100 kW.
- 15 batteries SCU 14,336 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outdoor installation)
- W*D*H: 1600*1330*2250

Total power inverter: 100 kVA / 100 kW
Total capacity battery: 215.04 kWh
Useful capacity battery: 204.29 kWh

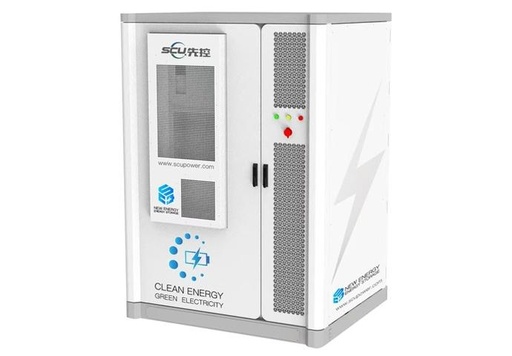

Systeem configuratie : 100kW / 240kWh
!!! Opgelet 3 jaar garantie !!!

• EMS (Energy Management System) voor intelligent energiebeheer.
• Volledig voorgeprogrammeerd systeem, zeer eenvoudig te installeren.
• Eén omvormer/lader SCU 100 kW.
• 15 batterijen SCU 16,077 kWh
• DoD (Dept of Discharge) van 95%.
• Geïntrigeerd brandblussysteem.
• Airconditioning met geïntegreerde celbediening voor de bedrijfstemperatuur.
• Cabinet (buiten installatie)

Totaal vermogen omvormer: 100 kVA / 100 kW
Totale capaciteit batterij: 241,15 kWh
Nuttige capaciteit batterij: 229,09 kWh

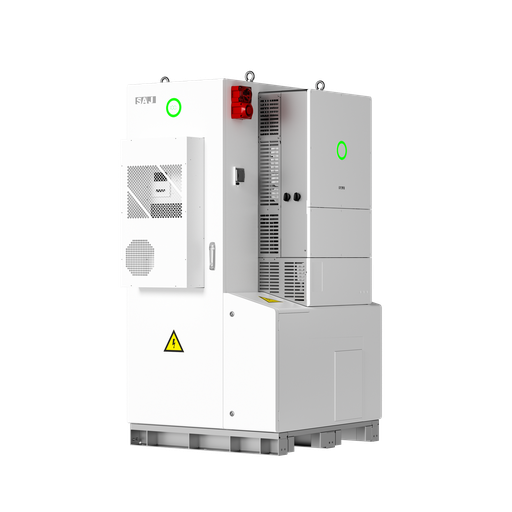

System configuration : 29,9kW / 100,3kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger SAJ 29,9 kW.
- 7 batteries SAJ
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 988*1065*1980 mm

Total power inverter: 29,9 kVA / 29,9 kW
Total capacity battery: 100,3 kWh
Useful capacity battery: 95,28 kWh

System configuration : 29,9kW / 57,3kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger SAJ 29,9 kW.
- 4 batteries SAJ
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 988*1065*1980 mm

Total power inverter: 29,9 kVA / 29,9 kW
Total capacity battery: 57,3 kWh
Useful capacity battery: 54,43 kWh

System configuration : 50kW / 100,3kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger SAJ 50 kW.
- 7 batteries SAJ
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 988*1065*1980 mm

Total power inverter: 55 kVA / 50 kW
Total capacity battery: 100,3 kWh
Useful capacity battery: 95,28 kWh

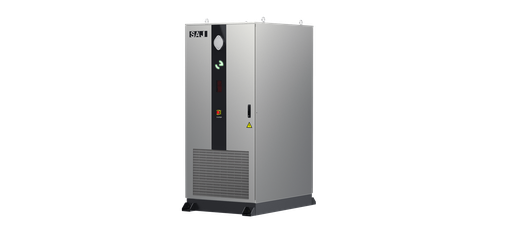

System configuration : 125kW / 261kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger SAJ 125 kW.
- 5 batteries SAJ
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooling (Battery), air forced (PCS)
- Cabinet (outside installation)
- W*D*H, excluding inverter: 1030*1400*2325mm

Total power inverter: 137,5 kVA / 125 kW
Total capacity battery: 261,00 kWh
Useful capacity battery: 247,95 kWh

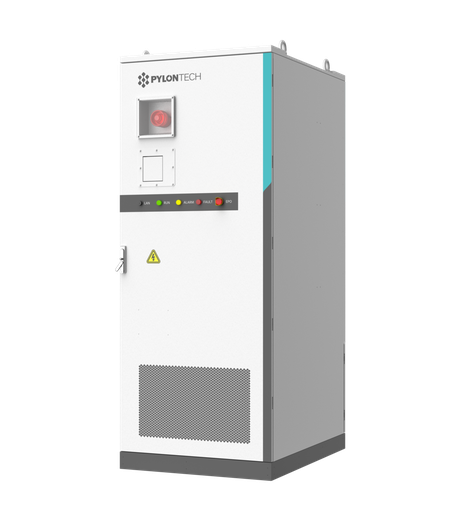

System configuration : 125kW / 261.25kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 1 Inverter/Charger In-power 125kW.
- 5 batteries Pylontech M7
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system
- Cabinet (outside installation)

Total power inverter: 125 kVA / 125 kW
Total capacity battery: 261.25 kWh
Useful capacity battery: 248.19 kWh

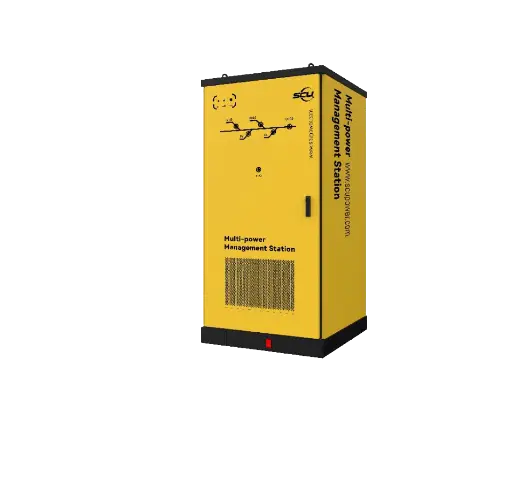

PowerSync Distribution Cabinet integrates
- the power grid.
- renewable energy (e.g., solar power)
- traditional energy sources (e.g., diesel generators)
- energy storage units
Achieving dynamic energy balance through intelligent dispatch.
As a core component, the "Multi-energy Complementary Energy Storage System"
incorporates a lithium battery system, PCS (Power Conversion
System), control system, and external interfaces.

This system enables:
- Uninterrupted power supply during grid outages
- PV consumption maximization (solar energy utilization)
- Seamless Oms cut-in/cut-out synchronization with diesel generators
- Economical fuel consumption control or diesel generators
