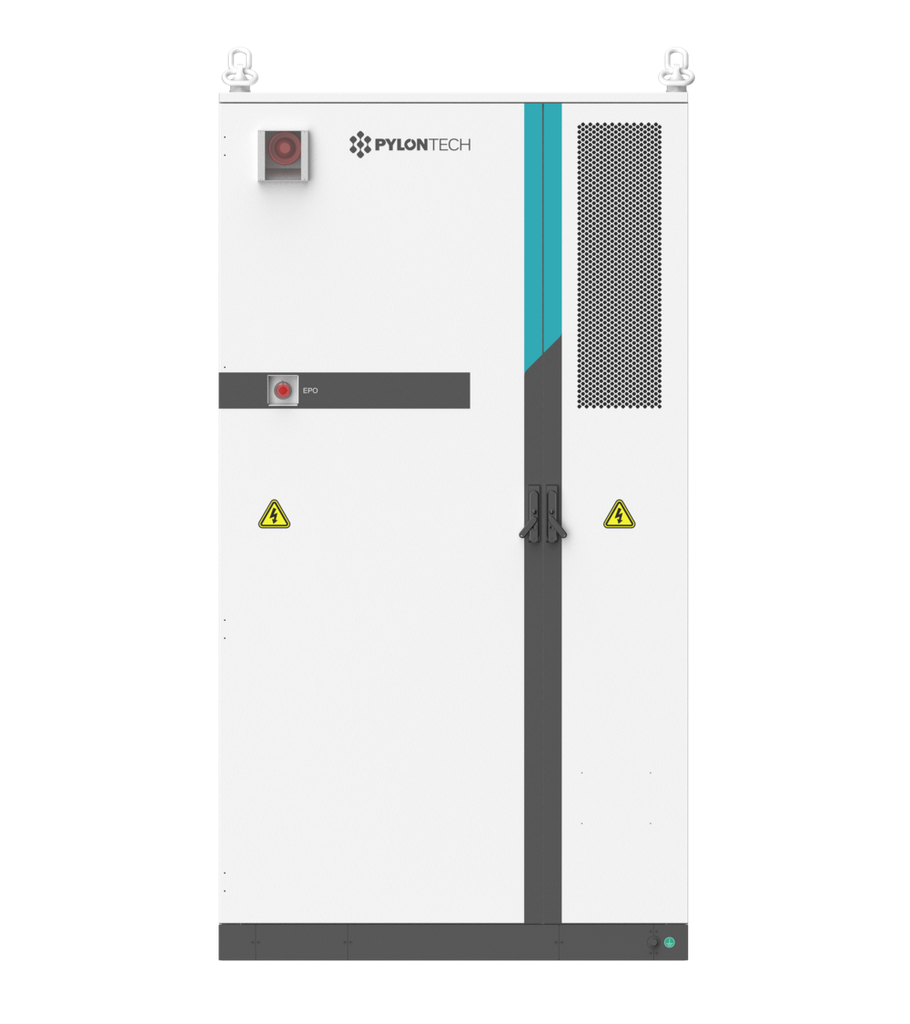

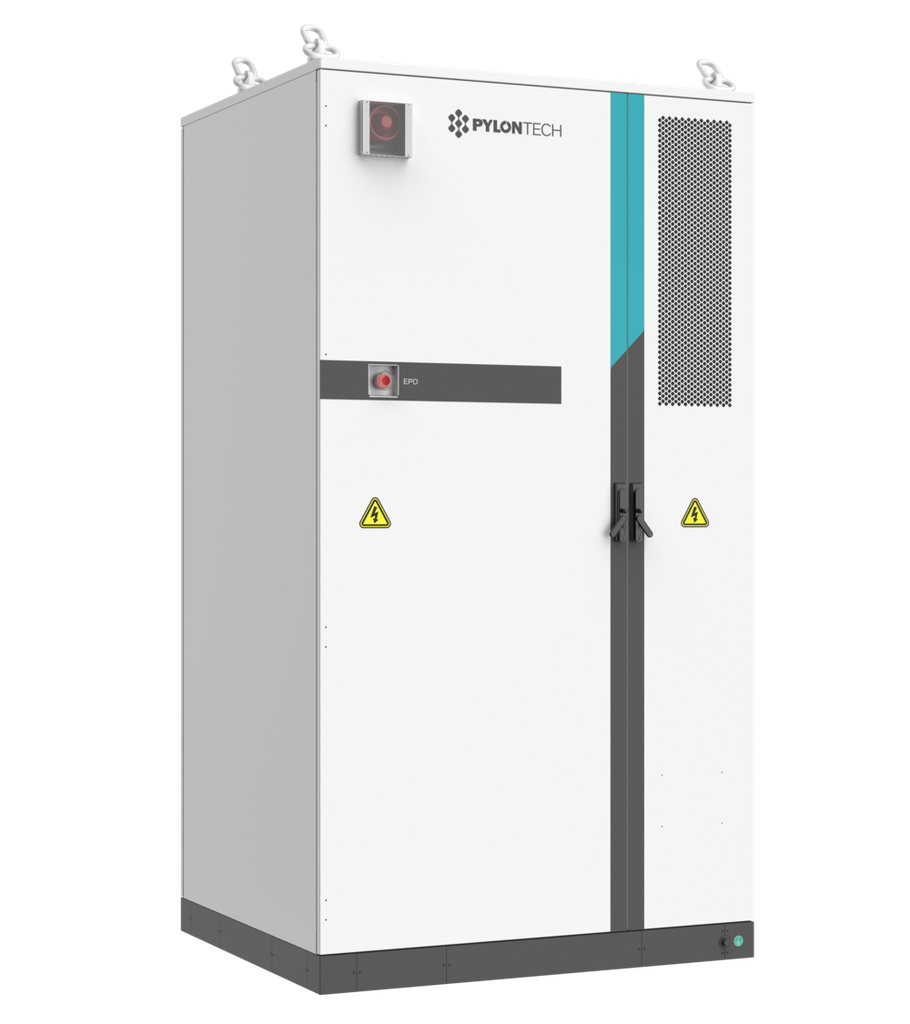

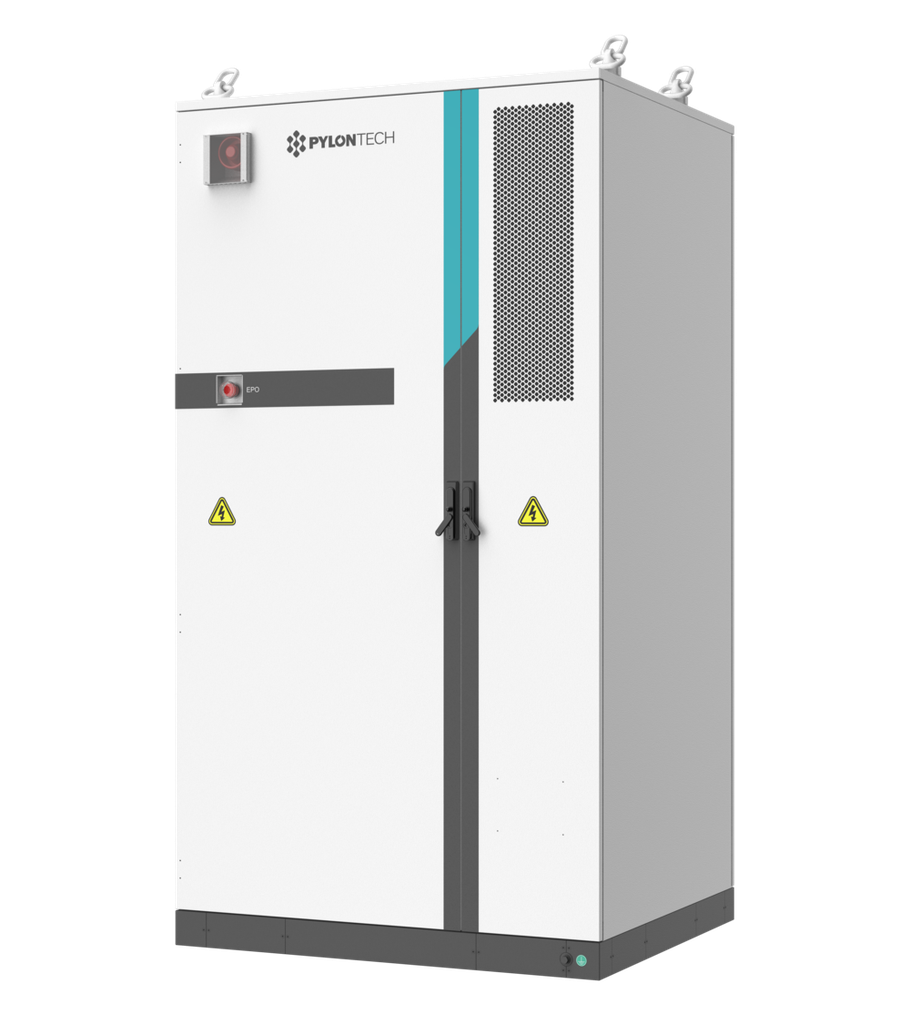

A100-HY-21BAT

System configuration : 50kW / 99.54kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Inverter/charger Solinteg 50 kW.

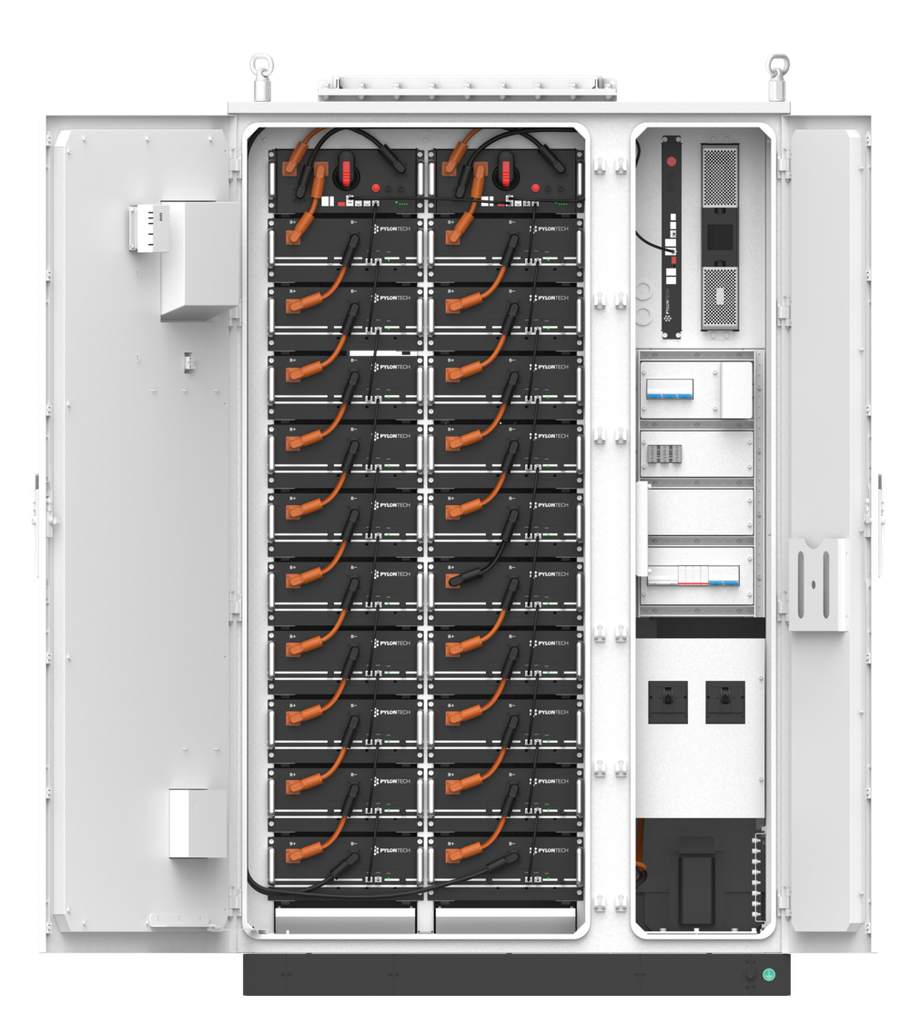

- 21 batteries Pylontech M1
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.

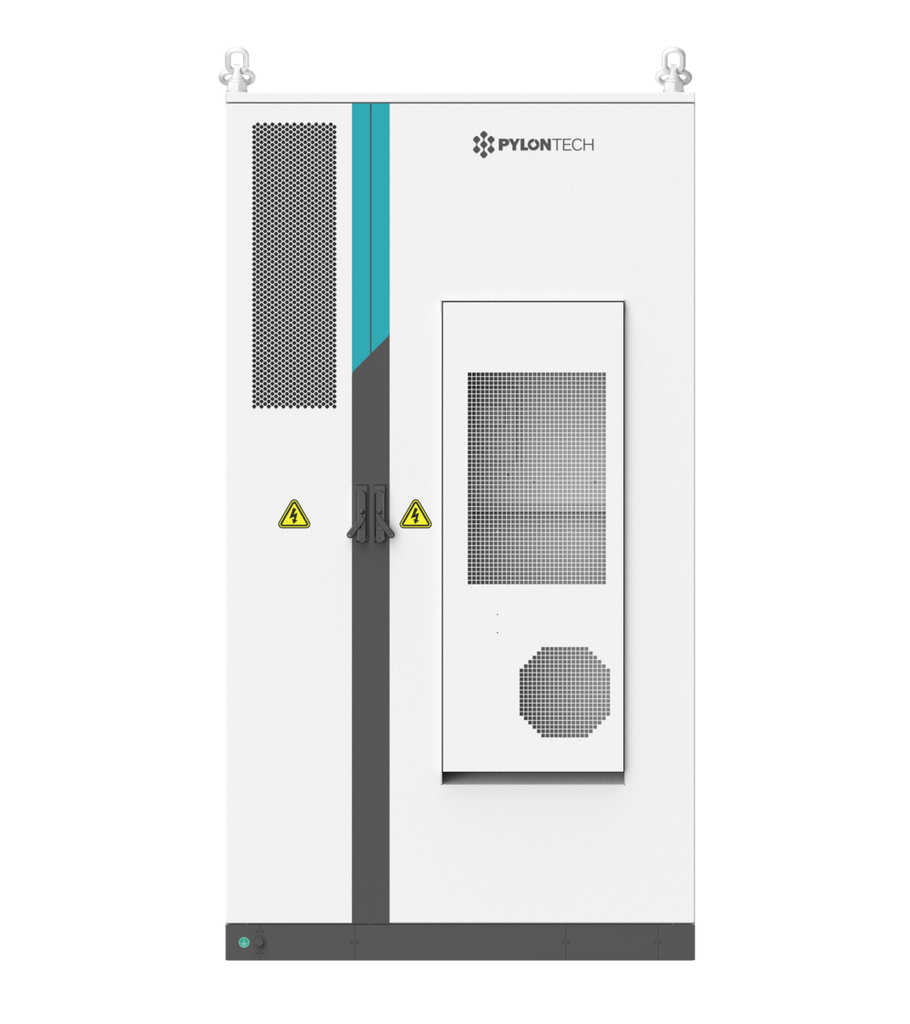

- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H, excluding inverter: 1500 × 2195 × 1125 mm

Total power inverter: 55 kVA / 50 kW
Total capacity battery: 99.54 kWh
Useful capacity battery: 94.48 kWh
