110kW Three phase solar inverter
12 MPPT
AFCI Switch Integrated
IP65
10 years warranty

125kW Three phase solar inverter
12 MPPT
AFCI Switch Integrated
IP65
10 years warranty

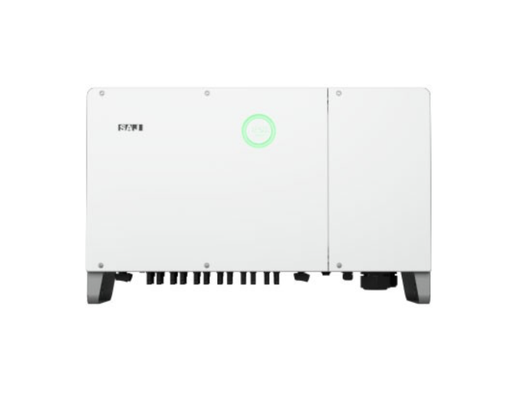

75 kW Three phase solar inverter
6 MPPT
AFCI Switch Integrated
IP65
10 years warranty

Systeem configuratie : 99,9kW / 261kWh

• EMS (Energy Management System) voor intelligent energiebeheer.
• Volledig voorgeprogrammeerd systeem, zeer eenvoudig te installeren.
• Omvormer/lader SAJ 99,9 kW.
• 5 batterijen SAJ
• DoD (Dept of Discharge) van 95%.
• Geïntrigeerd brandblussysteem.
• Airconditioning met geïntegreerde celbediening voor de bedrijfstemperatuur.
• Cabinet (buiten installatie)
• B*D*H (zonder omvormer) 1030*1400*2325mm

Totaal vermogen omvormer: 99,9 kVA / 99,9 kW
Totale capaciteit batterij: 261,00 kWh
Nuttige capaciteit batterij: 247,95 kWh

Intelligent linkage heat pump
Generation data metering & Intelligent energy scheduling
Fast configuration, Enable inverter parallel funcation
Integrated meter, built-in CT, removable interface easy installation
Support 5G+2.4G WiFi bluetooth

• Type 2 cable (7m as standard)
• Wall-mount/Pole-mount installation
• Work with new & existing storage systems
• Authentication through RFID & APP
• Multiple communication methods
• Monitoring & control via elekeeper
• Dynamic load balancing
• Automatic phase switch
• 30mA Type A + 6mA DC
• Relay-sticking protection
• IP65 for both indoor and outdoor usage
•3 year warranty

• Type 2 cable (7m as standard)
• Wall-mount/Pole-mount installation
• Work with new & existing storage systems
• Authentication through RFID & APP
• Multiple communication methods
• Monitoring & control via elekeeper
• Dynamic load balancing
• Automatic phase switch
• 30mA Type A + 6mA DC
• Relay-sticking protection
• IP65 for both indoor and outdoor usage
•3 year warranty

• Hybrid inverter (all-in-one)
• Very easy to install
• Three-phase - 10kW - 16A - IP65
• Can be connected to max. 8x BU3 battery 5kWh
• 10-year warranty

Please note: batteries and battery base must be ordered separately.
See also photo 2 for possible configurations.

Manufacturer: SAJ

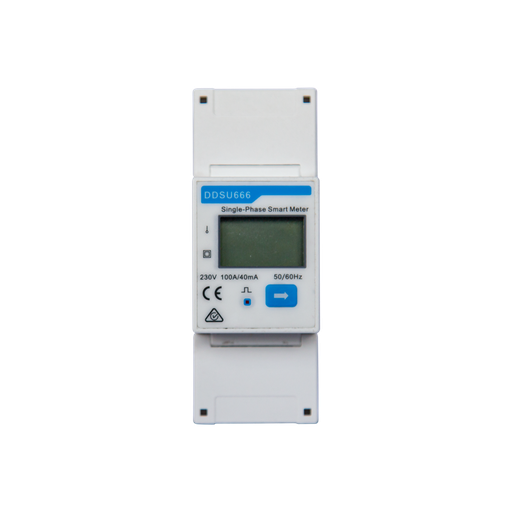

1-phase Chint Meter, 80A for zero export (Single Phase R5, R6, H1, AS1, HS2)

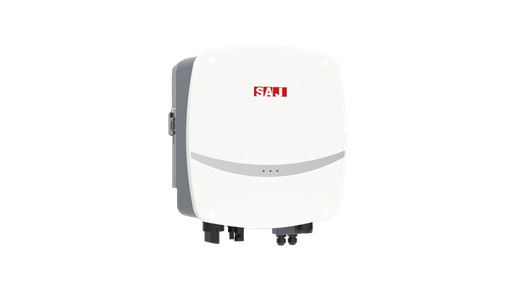

• Solar inverter 2 MPPT (1/1)
• Very easy to install
• Single-phase - 4kW - IP65
• 10-year warranty

Manufacturer: SAJ

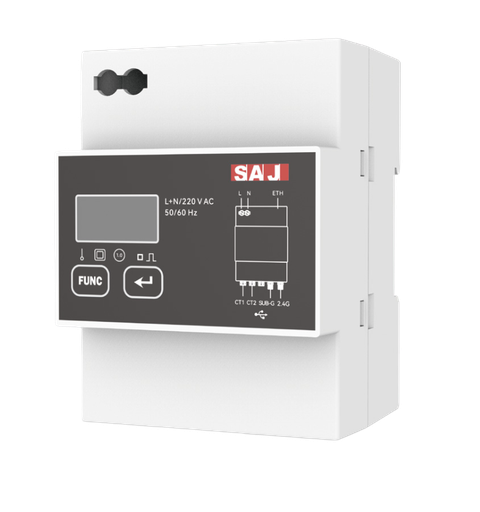

Intelligent linkage heat pump
Generation data metering & Intelligent energy scheduling
Fast configuration, Enable inverter parallel funcation
Integrated meter, built-in CT, removable interface easy installation
Support 5G+2.4G WiFi bluetooth

High precision export limit control
External CT sampling, easy to install
Sub-1G is used for long transmission
distance and strong penetration
24/7 hours load monitoring

Isolatietransformator van 1725kva
- MV AC voltage 11kv - 33kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
Omvormers PWS1-1725KTL 8M1 (1725 kw)

Isolatietransformator van 1725kva
- MV AC voltage 11kv - 33kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
Omvormers PWS1-1725KTL 7M1 (1505 kw)

Isolatietransformator van 3450KW
- MV AC voltage 11kv - 33kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
Omvormers 2 * PWS1-1725KTL 8M1 (1725 kw)

Isolatietransformator van 1500kva
- MV AC voltage 15kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
1 Omvormers PWS1-1725KTL 7M1

Isolatietransformator van 1250kva
- MV AC voltage 15kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
1 Omvormers PWS1-1725KTL 6M1

Isolatietransformator van 5200KW
- MV AC voltage 11kv - 33kv
- LV AC voltage 690v
Transformator van 100kva
- AC voltage van 690v naar 400v
Omvormers 4 * PWS1-1725KTL 6M1 (1290 kw)

DC-DC PV Charger

Rated Power: 45kW
Maximum Input Voltage: 830V
Start-up Voltage: 250V
MPPT Voltage Range: 200~750 (430~750 @full load ) V
Number of MPPT: 3
Maximum Input Current of each MPPT: 35A/35A/35A

Power Conversion System (PCS)

Flexible Configuration
AC voltage 690(-15%~10%)V
DC Voltage range 1000~1500V
