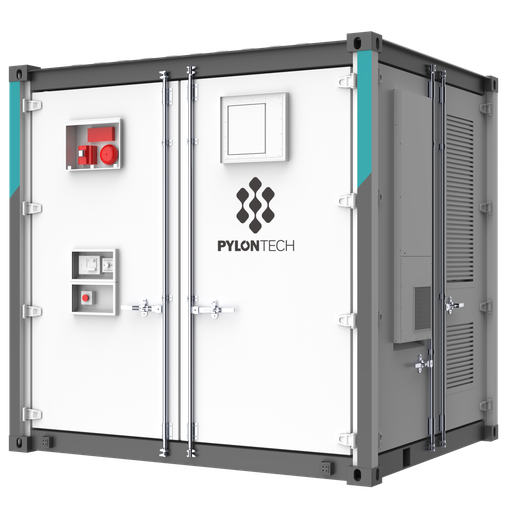

System configuration : 187.5kW / 344.96kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 187.5 kW without transformer.
- 22 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 187.5 kVA / 187.5 kW
Total capacity battery: 344.96 kWh
Useful capacity battery: 327.71 kWh

System configuration : 250kW / 517.44kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 250 kW without transformer.
- 33 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 250 kVA / 250 kW
Total capacity battery: 517.44 kWh
Useful capacity battery: 491.57 kWh

System configuration : 375kW / 689.92kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 375 kW without transformer.
- 44 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 375 kVA / 375 kW
Total capacity battery: 689.92 kWh
Useful capacity battery: 655.42 kWh

System configuration : 437.5kW / 862.4kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 437,5 kW without transformer.
- 55 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 437.5 kVA / 437.5 kW
Total capacity battery: 862.4 kWh
Usable capacity battery: 819.28 kWh

System configuration : 500kW / 1034.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 500 kW without transformer.
- 66 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 10FT HQ container (outdoor installation).

Total power inverter: 500 kVA / 500 kW
Total capacity battery: 1034.88 kWh
Useful capacity battery: 983.14 kWh

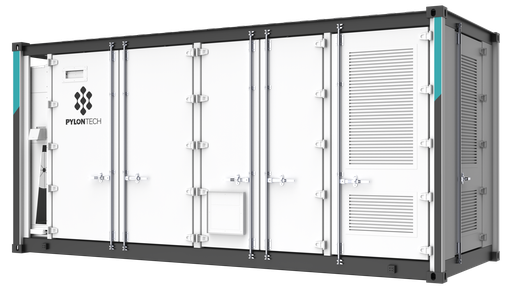

System configuration : 1000kW / 2069.76kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 500 kW without transformer.
- 132 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 1000 kVA / 1000 kW
Total capacity battery: 2069.76 kWh
Useful capacity battery: 1966.27 kWh

System configuration : 750kW / 1379.84kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- Two inverter/chargers Sinexcel 375 kW without transformer.
- 88 batteries Pylontech M5 15.68 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Air conditioning with integrated cell control for operating temperature.
- 20FT HQ container (outdoor installation).

Total power inverter: 750 kVA / 750 kW
Total capacity battery: 1379.84 kWh
Useful capacity battery: 1310.85 kWh

System configuration : 1075kW / 2090kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1075 kW without transformer.
- 40 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1075 kVA / 1075 kW
Total capacity battery: 2090.00 kWh
Useful capacity battery: 1985.50 kWh

System configuration : 1290kW / 2508kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1290 kW without transformer.
- 48 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1290 kVA / 1290 kW
Total capacity battery: 2508.00 kWh
Useful capacity battery: 2382.60 kWh

System configuration : 1500kW / 2926kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1505 kW without transformer.
- 56 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1505 kVA / 1505 kW
Total capacity battery: 2926.00 kWh
Useful capacity battery: 2779.70 kWh

System configuration : 1725kW / 3344kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- One inverter/charger Sinexcel 1725 kW without transformer.
- 64 batteries Pylontech M7 52.25 kWh
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.
- Liquid cooled system.
- 20FT HQ container (outside installation).

Total power inverter: 1725 kVA / 1725 kW
Total capacity battery: 3344.00 kWh
Useful capacity battery: 3176.80 kWh
