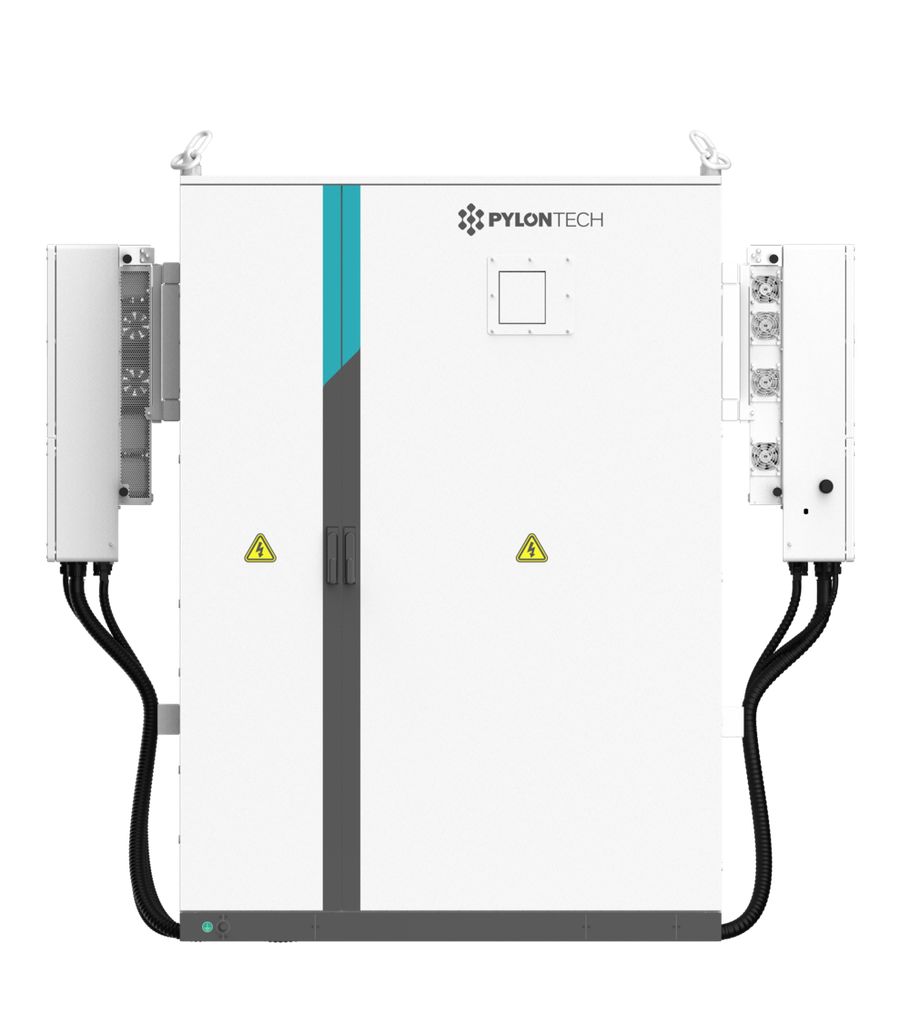

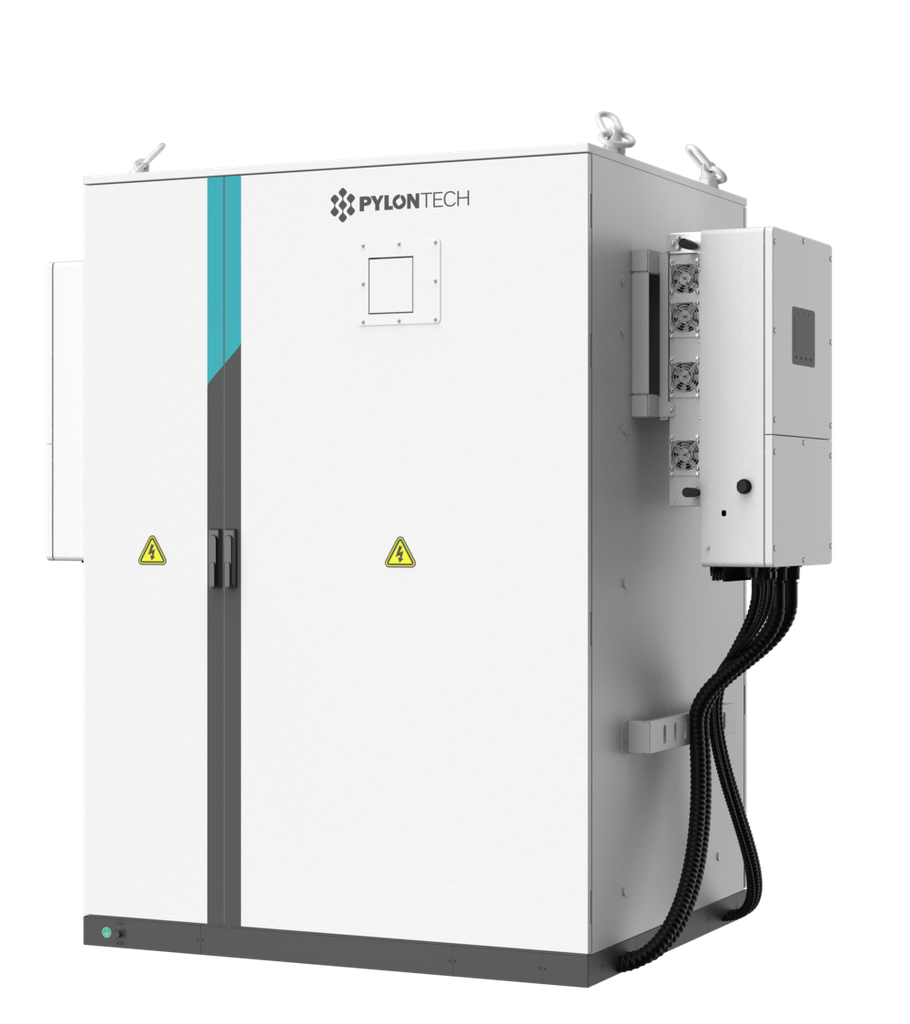

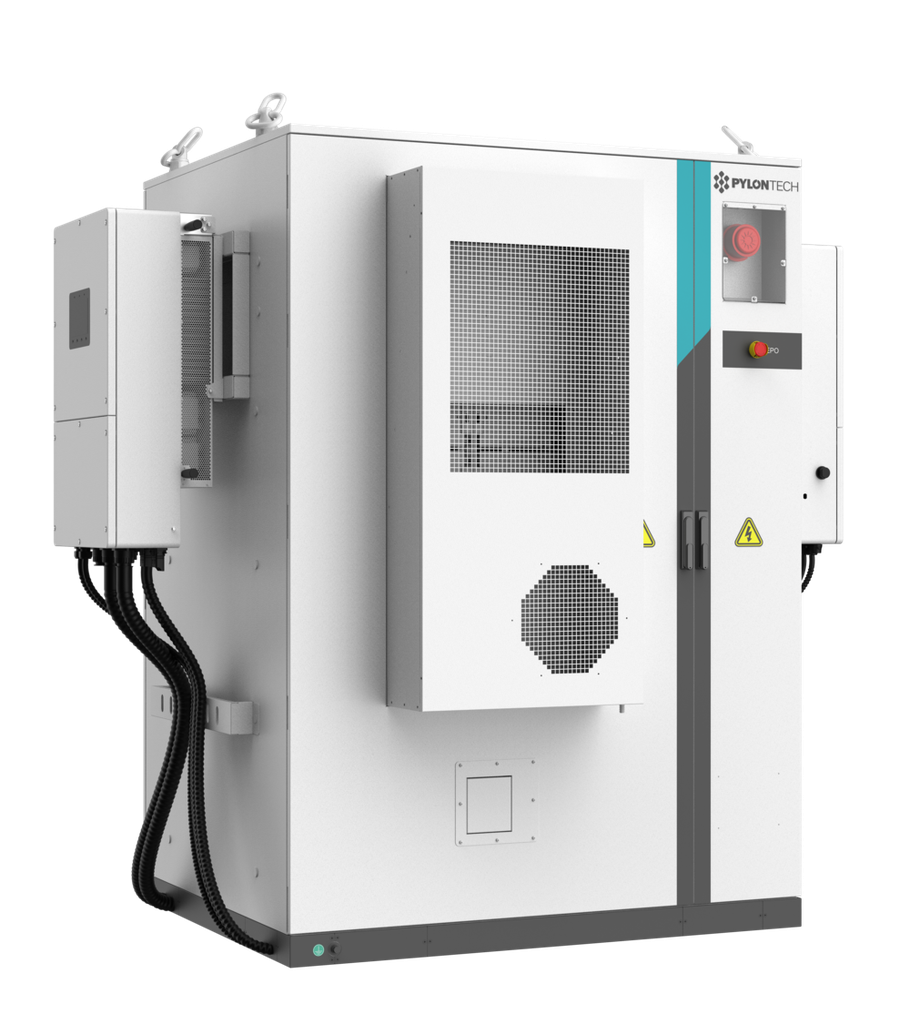

A300-HY-16BAT

System configuration : 100kW / 250.88kWh

- EMS (Energy Management System) for intelligent energy management.
- Fully pre-programmed system, very easy to install.
- 2 Inverters/chargers Solinteg 50 kW.

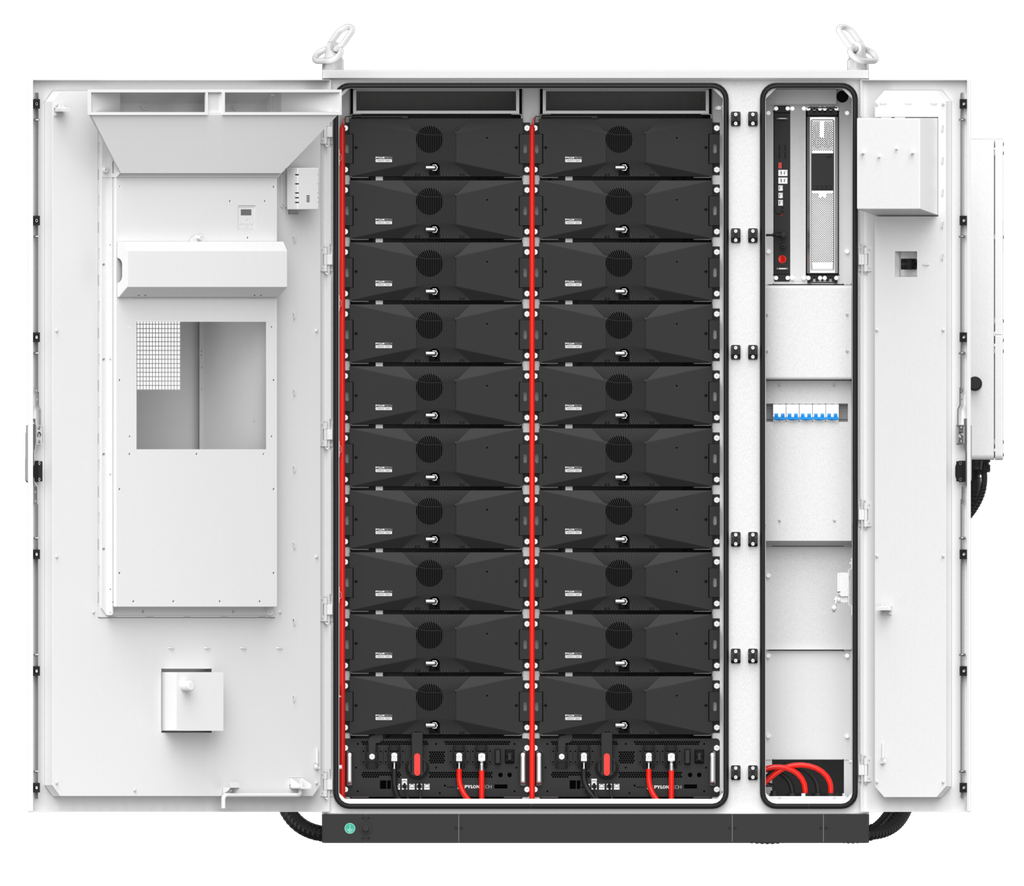

- 16 batteries Pylontech M5
- DoD (Dept of Discharge) of 95%.
- Integrated fire suppression system.

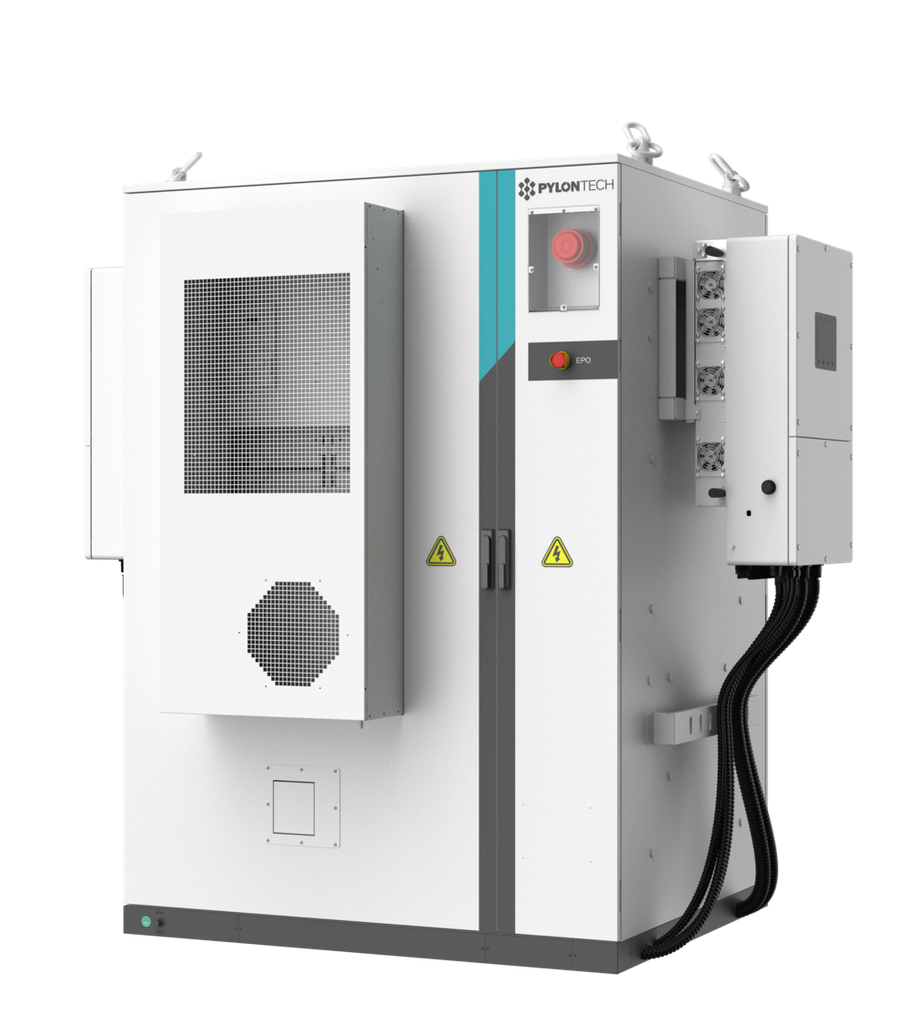

- Air conditioning with integrated cell control for operating temperature.
- Cabinet (outside installation)
- W*D*H (without inverter) 1500*1300*2200 mm

Total power inverter: 110 kVA / 100 kW
Total capacity battery: 250.88 kWh
Useful capacity battery: 238.33 kWh
